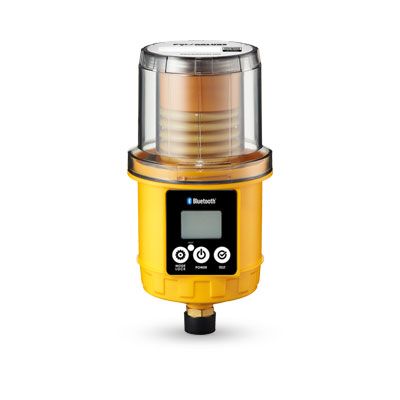

60

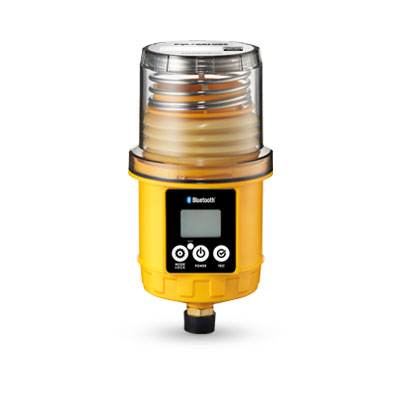

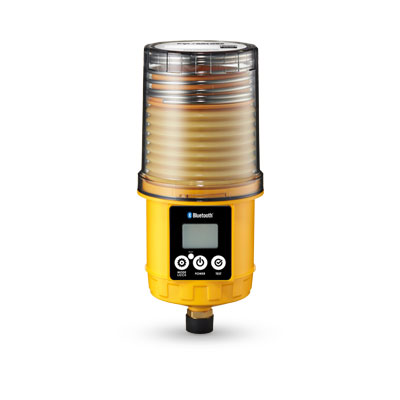

Pulsarlube LK-EXPL(r)
Safer & Smarter

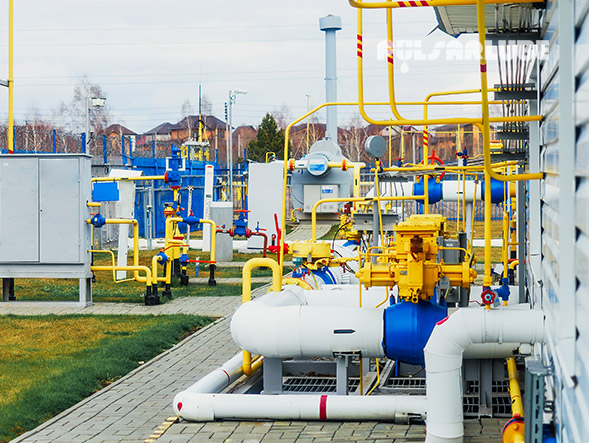

Lubrication in Hazardous Areas
The Pulsarlube LK-EXPL(r) is an explosion-proof automatic lubricator with two-way communication designed for safe automatic lubrication in hazardous industrial environments.
With Bluetooth 5.4 and LINK system integration, users can remotely monitor lubricator status and key events.
-
Certified Explosion Protection
IECEx · ATEX · KCs Certifications · IP66 Protection
-
Real-Time Monitoring with LINK
Monitor lubricator status and key events via Bluetooth 5.4
-
Powerful & Flexible Lubrication
Up to 60 bar · 8 points · Remote and multi-point lubrication
Features & Benefits
Explosion-Proof Certification
IECEx, ATEX and KCs certifications support use in applicable hazardous areas where flammable gases or vapors may be present.
LINK System Integration
Bluetooth 5.4 two-way communication enables remote monitoring of lubricator status and key events.
High Dispensing Performance
High dispensing pressure of up to 60 bar and multi-point lubrication of up to 8 points support various lubrication applications.
IP66 Protection
Dust- and water-resistant design supports reliable operation in industrial environments exposed to dust and moisture.
Product Information

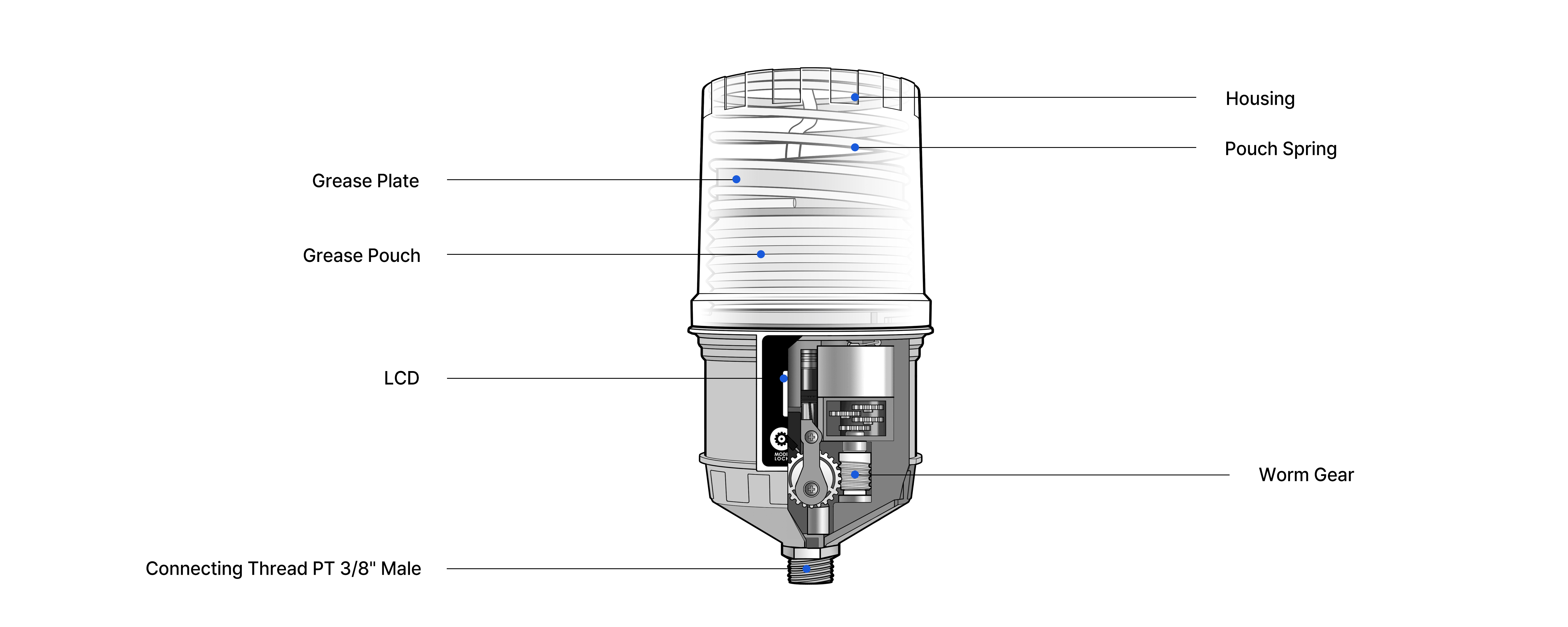

Cross Section
_EN.png)
Specifications & Certifications
| Item | Description |
|---|---|

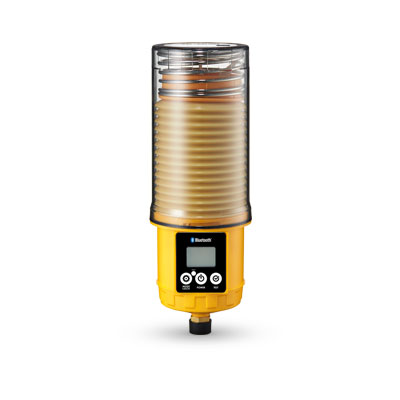

| Grease Pouch Capacity | 60ml / 125ml / 250ml / 500ml (Selectable Capacity) |
| Power Supply | DC 4.5V Battery Pack (Replaceable) Standard: Alkaline Battery Optional: Lithium Battery * 500ml: Lithium Battery Pack |
| Operating Pressure | Guaranteed Pressure: 30bar (435psi) Max. Pressure: 60bar (870psi) |
| Operating Temperature | Standard Alkaline Battery: -15℃ to 60℃ Optional Lithium Battery: -40℃ to 60℃ |
| Dispensing Period | 60 / 125 / 250ml: C, 1–12 Months 500ml: C, 1–6 Months |
| Single Point Remote Installation | Up to 10m, Ø6 Tube |
| Multi-Point Installation | Up to 6m, Ø6 Tube (Max. 8 Points) |
| Packing Unit | 10 Units per Box |
| Certification | Description |
|---|---|
| IECEx | Ex ic IIB T4 Gc |
| ATEX | II 3 G Ex ic IIB T4 Gc |
| KCs | Ex ic IIB T4 Gc |
| IP Code | IP66 |
| Other Certifications | CE / KC / FCC |
Mounting Methods
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (For Copper Tubing) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (For Copper Tubing) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Steel) |
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (For Copper Tubing) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (For Copper Tubing) |
| Part No. | Description |
| A121 | Pipe, 1/4”M x 1/4”M x 50mm (Steel) |
| A122 | Pipe, 1/4”M x 1/4”M x 100mm (Steel) |
| A123 | Pipe, 1/4”M x 1/4”M x 150mm (Steel) |
| A124 | Pipe, 1/4”M x 1/4”M x 200mm (Steel) |
| Part No. | Description |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 100mm (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm (Steel) |
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4”M x 1/4”F Adaptor (For Copper Tubing) |
| A024 | 45° Elbow, 1/8”M x 1/8”F Adaptor (For Copper Tubing) |
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4”F x 1/4”F Adaptor (For Copper Tubing) |
| A020 | 90° Elbow, 1/8”F x 1/8”F Adaptor (For Copper Tubing) |
| A021 | 90° Elbow, 1/4”M x 1/4”F Adaptor (For Copper Tubing) |
| A022 | 90° Elbow, 1/8”M x 1/8”F Adaptor (For Copper Tubing) |
- Secure all fittings using PTFE tape.
- NLGI #1 grease is recommended for optimal performance when using a remote installation kit.
- If the bearing grease nipple has an NPT thread, use a thread converter for installation.
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (For Copper Tubing) |
| B002 | Mounting Bracket, "L" Shape |
| B051 | Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (For Copper Tubing) |
| A240 | Tube Fitting (Push-In Type), PC6-PT1/8"M |
| A214-1 | Nylon Tube (Black), 3m (10ft), O.D. 1/4" (6mm) |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (For Copper Tubing) |
Note: Upon request at the time of ordering, the tube included in the kit (8mm O.D., 5/16") can be pre-filled with the specified grease. Otherwise, the tube will be shipped empty. A shorter dispensing period is recommended for remote installation.
| Part No. | Description | Quantity |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (For Copper Tubing) | 1 |
| B002 | Mounting Bracket, "L" Shape | 1 |
| B051 | Screw, #8 x 20 | 1 |
| DU-2RS ~ DU-8RS | 2- to 8-Point Divider Block | 1 |
| B058 | Toothed Washer | 2 |
| A240 | Tube Fitting (Push-In Type), PC6-PT1/8"M | 3 |
| A214-1 | Nylon Tube (Black), 3m (10ft), O.D. 1/4" (6mm) | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (For Copper Tubing) | 1 |
