SPRING

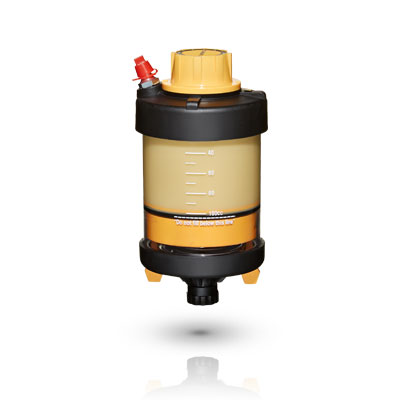

Pulsarlube S

SERIES S100 : Ø67mm (2.64") x 129mm (5.08")(H)
  • Advanced Spring Type Lubricator Pulsarlube S

The Pulsarlube S Unique and Ingenious Design.
The Pulsarlube S is an advanced spring type lubricator operates with the spring at the bottom and an upward piston movement, which dramatically reduces the effects of oil separation that have plagued traditional spring type lubricators.
FEATURES
Advanced Spring Type Lubricator Design

Design

The upward piston movement reduces oil separation and the possibility of grease hardening

Advanced Spring Type Lubricator Easy to Refill

Easy to Refill

Easy to refill grease on site using grease nipple

Advanced Spring Type Lubricator Control Knob

Control Knob

Grease dispensing rate can be easily controlled by using the control knobs

Advanced Spring Type Lubricator Pre-Filled

Pre-Filled

Available pre-filled

PRODUCT INFO

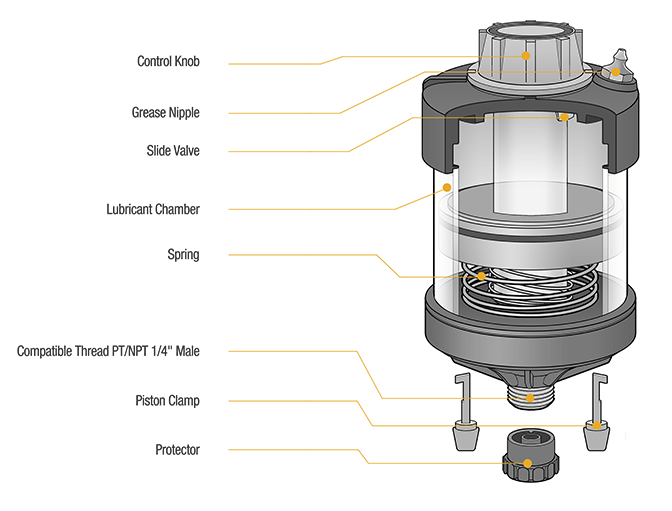

CROSS SECTION

Advanced Spring Type Lubricator Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Grease Capacity 100ml (refillable)
Operating Method Spring
Operating Pressure N/A
Operating Temperature -20℃~100℃ (-4°F~212°F)
Dispensing Periods 5 Dial Settings
Remote Installation N/A
Multi-Point Installation N/A
Packaging 10 Units/Case
Product Certifications
Certification Description
IP Code N/A
Etc. N/A

INSTALLATIONS

Advanced Spring Type Lubricator Reducer
Reducer
Part No. Description
A003 Reducer, 3/8"F x 1/8"M Adaptor (Steel)
A004 Reducer, 1/4"F x M8 x 1.25 M Adaptor (Steel)
A005 Reducer, 1/4"F x 1/8" M Adaptor (Brass)
Advanced Spring Type Lubricator Socket + Pipe + Reducer
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
Advanced Spring Type Lubricator 45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
Advanced Spring Type Lubricator 90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
