Service Packs

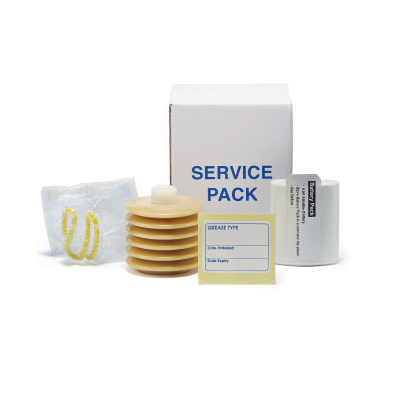

SERIES Service Pack 60
  • Service Packs


The Pulsarlube electromechanical grease lubricators are developed to last multiple cycles through the use of replaceable service packs. As a result, one of the most significant benefits of the Pulsarlube electromechanical lubricators is the substantial accumulated savings over the cost of manual lubrication while providing assurance of the most precise and reliable lubrication quality.
Lubricator Replaceable Service Packs The Service Pack must be replaced when monthly cycle is finished.

The Service Pack must be replaced when monthly cycle is finished.

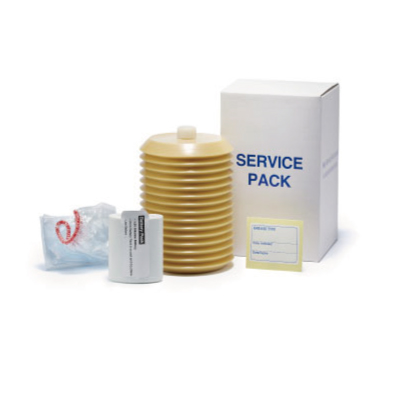

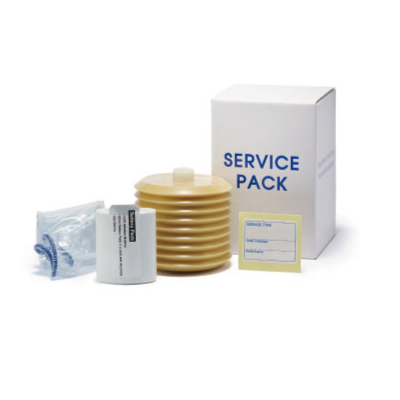

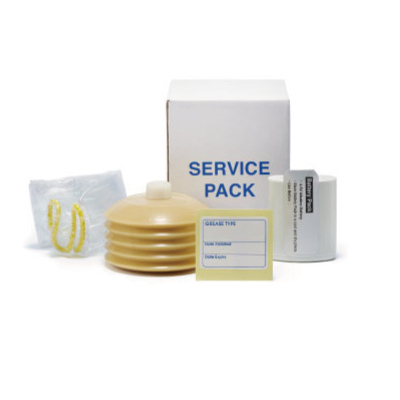

Service Pack consists of
A grease pouch of selectable lubricant type in various volumes
An OEM battery pack : DC 4.5V Alkaline battery pack (standard) or DC 4.5V Lithium battery pack
* Note : A battery pack is not included in the MSP and PLC service packs
A disposable dust cover : PVC dust cover (standard) or U/V protection dust cover
* Note : A dust cover is not included in the PLC service packs

Lubricator Replaceable Service Packs Cost Savings

Cost Savings

Substantial savings from the use of replaceable grease pouches and battery packs (Service Pack)

Lubricator Replaceable Service Packs User Friendly

User Friendly

Designed for easy replacement for users to change the used grease pouches and battery packs (Service Pack)

Lubricator Replaceable Service Packs Grease Pouch

Grease Pouch

Choose a proper size.

Lubricator Replaceable Service Packs Battery Pack

Battery Pack

① Standard DC 4.5V Alkaline Battery
② Optional DC 4.5V Lithium Battery

Lubricator Replaceable Service Packs Disposable Dust Cover

Disposable Dust Cover

Used in outdoor and dusty, damp conditions.

Applications Alkaline Battery Pack (Standard) Lithium Battery Pack (Optional)
Direct Mount OK OK
Operating Temp Range -15°C ~ 60°C (5°F ~ 140°F) -40°C ~ 60°C (-40°F ~ 140°F)
Operating Period Up to 12 months Up to 24 months
Remote Installation 3m (10ft) or less on a single line Up to 6m (20ft) per line
Multi-Point Lubrication OK Recommended
500ml Grease Pouch OK Recommended
