Product Overview Pulsarlube LK-BT(r)

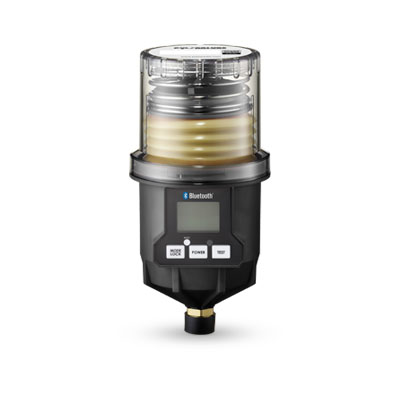

_125.jpg)

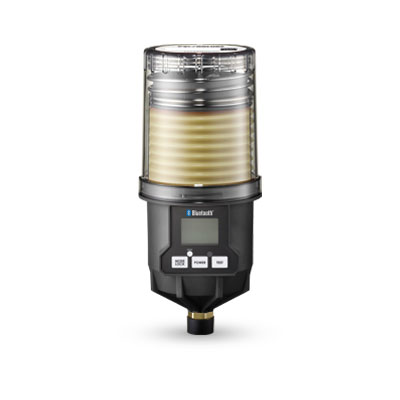

_250.jpg)

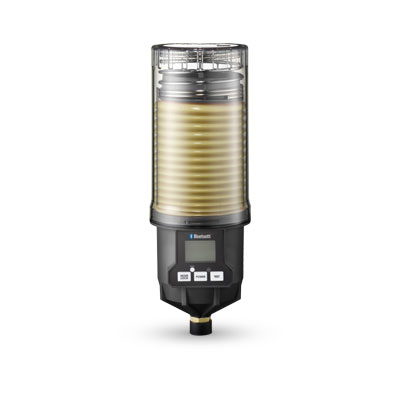

_500.jpg)
-
_60.jpg)
60
Pulsarlube LK-BT(r)
Smarter & More Convenient
Lubrication Management
The Pulsarlube LK-BT(r) is a smart automatic lubricator with two-way Bluetooth 5.4 communication, allowing users to remotely control the lubricator and check its operating status.
When connected to the LINK system, users can monitor lubricator status and key events in real time, enabling efficient lubrication management without frequent site visits.
-
Remote Start/Stop Control
Remote lubricator control via Bluetooth 5.4
-
Real-Time Monitoring with LINK
Monitor lubricator status and key events from one platform
-
Powerful & Flexible Lubrication
Up to 60 bar · 8 points · Remote and multi-point lubrication
Features & Benefits
Enhanced Convenience
Remote start/stop control reduces the need for frequent site visits and routine inspections.
LINK System Integration
Real-time monitoring of lubricator status and events enables more efficient lubrication management.
Centralized Data Management
Digitize equipment management data for systematic record keeping and efficient maintenance.
High Dispensing Performance
High dispensing pressure of up to 60 bar and multi-point lubrication of up to 8 points support various lubrication applications.
Product Information

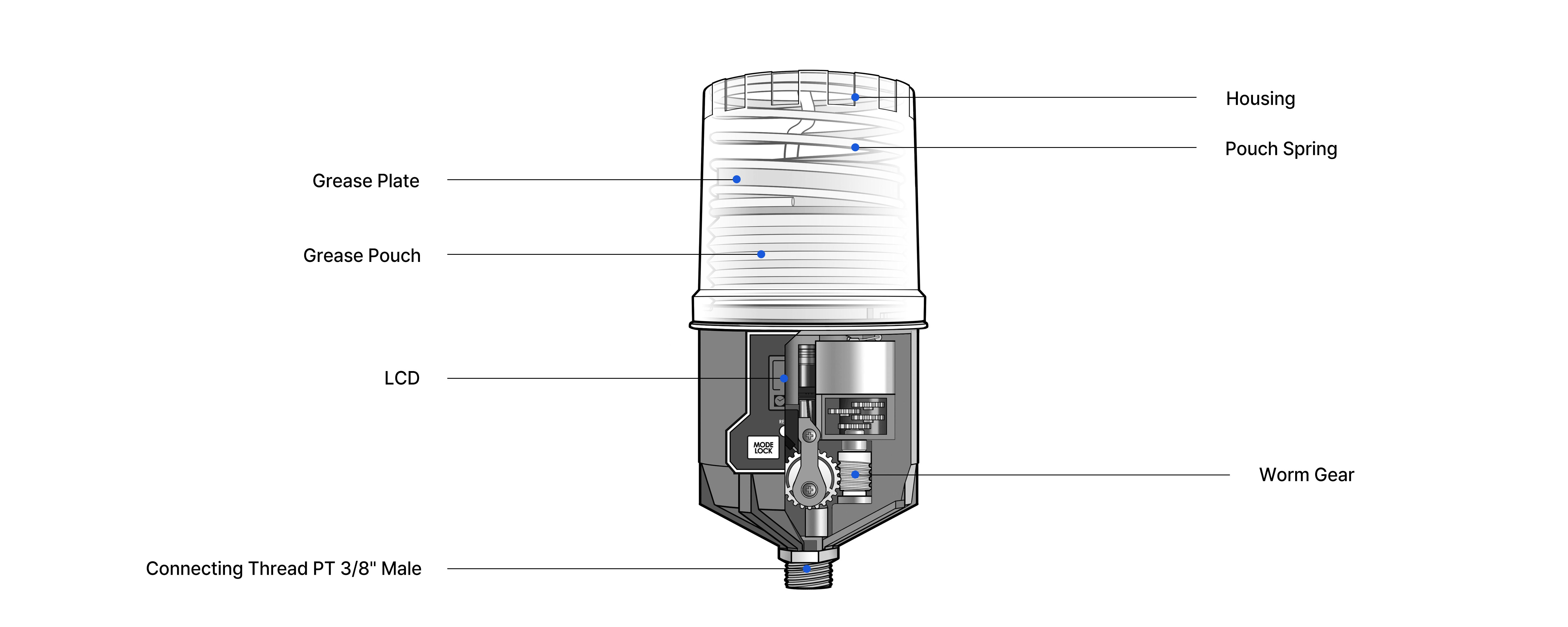

Cross Section
_EN.png)
Specifications & Certifications
| Item | Description |
|---|---|
| Service Pack | Replaceable |
| Grease Pouch Capacity | 60ml / 125ml / 250ml / 500ml (Selectable Capacity) |
| Power Supply |
DC 4.5V Battery Pack (Replaceable) Standard: Alkaline Battery Optional: Lithium Battery * 500ml: Lithium Battery Pack |
| Operating Pressure |
Guaranteed Pressure: 30bar (435psi) Max. Pressure: 60bar (870psi) |
| Operating Temperature |
Standard Alkaline Battery: -15℃ to 60℃ Optional Lithium Battery: -40℃ to 60℃ |
| Operating Method | LCD / Push Button |
| Dispensing Period |
60 / 125 / 250ml: C, 1–12 Months 500ml: C, 1–6 Months |
| Single Point Remote Installation | Up to 10m, Ø6 Tube |
| Multi-Point Installation | Up to 6m, Ø6 Tube (Max. 8 Points) |
| Dispensing Volume | 0.34ml/stroke (@ 20℃) |
| Connection Thread | PT 3/8" Male |
| Bluetooth | Bluetooth 5.4 |
| Dimensions |
60 / 125ml: Ø91 x 181mm (H) 250ml: Ø91 x 209mm (H) 500ml: Ø92 x 260mm (H) |
| Certification | Description |
|---|---|
| IP Code | IP65 |
| CE | CE |
| KC | KC |
| FCC | FCC |
Mounting Methods
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (For Copper Tubing) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (For Copper Tubing) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Steel) |
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (For Copper Tubing) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (For Copper Tubing) |
| Part No. | Description |
| A121 | Pipe, 1/4”M x 1/4”M x 50mm (Steel) |
| A122 | Pipe, 1/4”M x 1/4”M x 100mm (Steel) |
| A123 | Pipe, 1/4”M x 1/4”M x 150mm (Steel) |
| A124 | Pipe, 1/4”M x 1/4”M x 200mm (Steel) |
| Part No. | Description |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 100mm (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm (Steel) |
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4”M x 1/4”F Adaptor (For Copper Tubing) |
| A024 | 45° Elbow, 1/8”M x 1/8”F Adaptor (For Copper Tubing) |
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4”F x 1/4”F Adaptor (For Copper Tubing) |
| A020 | 90° Elbow, 1/8”F x 1/8”F Adaptor (For Copper Tubing) |
| A021 | 90° Elbow, 1/4”M x 1/4”F Adaptor (For Copper Tubing) |
| A022 | 90° Elbow, 1/8”M x 1/8”F Adaptor (For Copper Tubing) |
- Secure all fittings using PTFE tape.
- NLGI #1 grease is recommended for optimal performance when using a remote installation kit.
- If the bearing grease nipple has an NPT thread, use a thread converter for installation.
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (For Copper Tubing) |
| B002 | Mounting Bracket, "L" Shape |
| B051 | Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (For Copper Tubing) |
| A240 | Tube Fitting (Push-In Type), PC6-PT1/8"M |
| A214-1 | Nylon Tube (Black), 3m (10ft), O.D. 1/4" (6mm) |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (For Copper Tubing) |
Note: Upon request at the time of ordering, the tube included in the kit (8mm O.D., 5/16") can be pre-filled with the specified grease. Otherwise, the tube will be shipped empty. A shorter dispensing period is recommended for remote installation.
| Part No. | Description | Quantity |
|---|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (For Copper Tubing) | 1 |
| B002 | Mounting Bracket, "L" Shape | 1 |
| B051 | Screw, #8 x 20 | 1 |
| DU-2RS ~ DU-8RS | 2- to 8-Point Divider Block | 1 |
| B058 | Toothed Washer | 2 |
| A240 | Tube Fitting (Push-In Type), PC6-PT1/8"M | 3 |
| A214-1 | Nylon Tube (Black), 3m (10ft), O.D. 1/4" (6mm) | 1 |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (For Copper Tubing) | 1 |
