OILER
Pulsarlube PLC-OL480
SERIES
PLC-OL480 : Ø94mm x 229mm (H)
-
60
Pulsarlube PLC-OL480 is a PLC system-integrated oiler developed to allow users to operate directly
in accordance with various facility conditions in industrial environments.
QUICK DOWNLOAD
ThePulsarlube PLC-OL480 is a specialized oil lubricator featuring PLC connectivity, designed for use in automated production lines.
Users can flexibly modify programs to adapt to their needs. This feature enables precise remote maintenance management of key equipment,
reducing maintenance costs and extending equipment lifespan, thereby providing long-term cost savings.

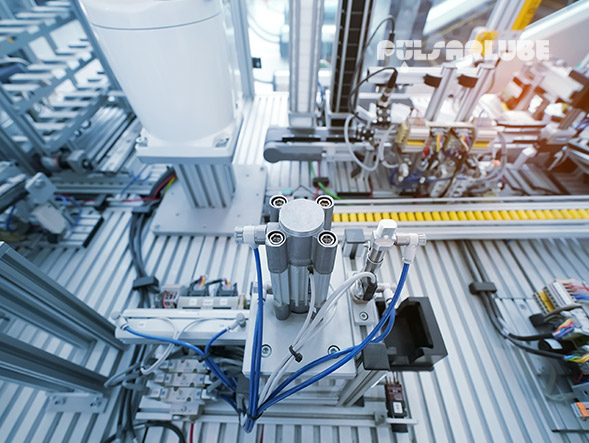

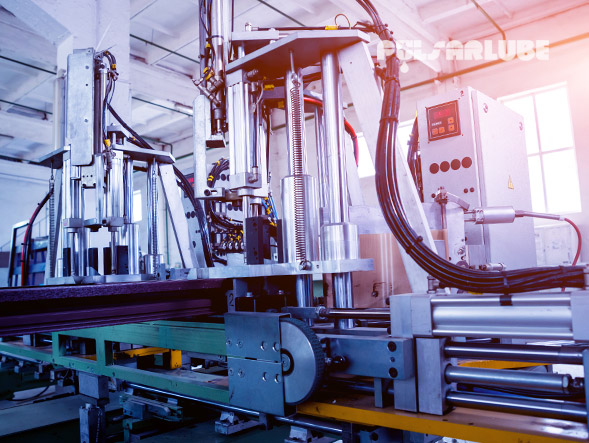

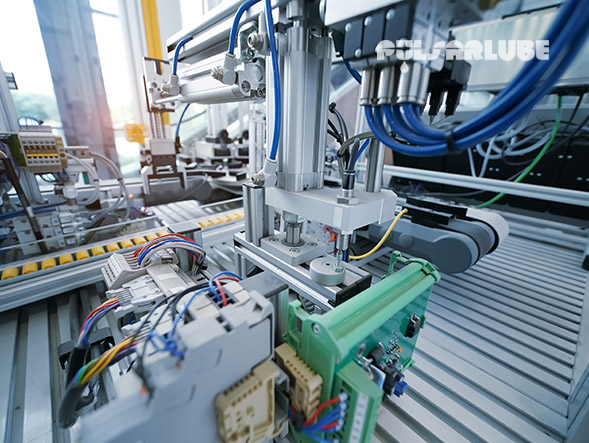

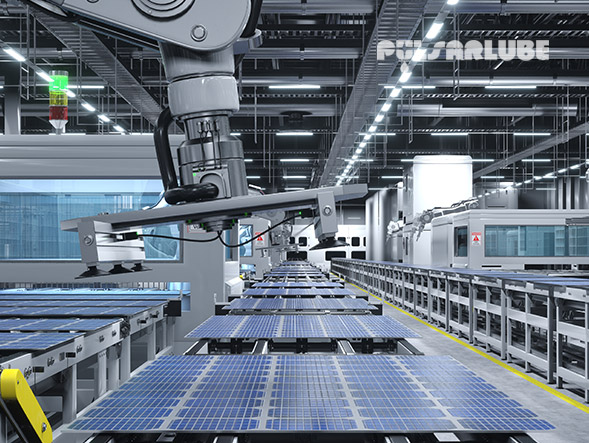

ThePulsarlube PLC-OL480 can be installed on applications across various industries such as robotic equipment, conveyor systems, automated production lines, automobile manufacturing, and provides the optimal solution to maximize efficiency on-site.
ThePulsarlube PLC-OL480 can be installed on applications across various industries such as robotic equipment, conveyor systems, automated production lines, automobile manufacturing, and provides the optimal solution to maximize efficiency on-site.
FEATURES
PLC System
Offers flexible operation by easily modifying programming via integration with PLC.
Convenient
Both NPN and PNP connections are available
2 Types
MONTH type dispenses at predetermined intervals and rates depending on the monthly setting selected. INTERVAL type dispenses on command when a signal is received from the PLC, at a rate selected by the user.
Easy Refill
Refillable oil reservoir
PRODUCT INFO
CROSS SECTION
SPEC & CERTIFICATIONS
| SPEC | Description |
|---|---|
| Grease Pouch Capacity | 480ml (refillable) |
| Power Supply | DC9~36V |
| operating pressure | 10bar (145psi) (depending on oil viscosity) |
| operating temperature | -20℃~60℃ |
| dispensing periods | MONTH TYPE : 1 ~ 12 Month INTERVAL TYPE : 1 ~ 6 Mode |
| remote installation | Max. 6m (20ft) with Ø4 tube |
| multi-point installation | Max. 3m with O.D. Ø4 tube (Up to 4 lube points) |
| IP Code | CE / IP65 |
| Oil Viscosity Range | 10~10,000 cSt@40˚C * Special instructions available for 10~100 cSt@40˚C |
| Wire Length | To Lubricator : 150mm (0.5ft) Extra connecting wires : 3m 4-pin |
| Certification | Description |
|---|---|
| CE |
INSTALLATIONS
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, “L”Shape |
| B057 | Washer |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) |
| C021-1 | O.D. 4mm Nylon Tubing (Clear), 10ft |
| C010 | Tube Clamp, Dia. 4mm x 1R |
| C007 | Tube Fitting, Dia. 4mm x PT1/8"M |
| C011 | Insert, Dia. 4mm x 2.5mm |
| C009 | Sleeve Ring, Dia. 4mm |
| Part No. | Description | Available Kits & Component Parts | ||
|---|---|---|---|---|
| 1250RO-2 | 1250RO-3 | 1250RO-4 | ||
| OL Unit | Available Separately | Sold separately | ||
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) | 1EA | ||
| B002 | Mounting Bracket, "L"Shape | 1EA | ||
| B057 | Washer | 1EA | ||
| B051 | Self Drilling Screw, #8 x 20 | 7EA | 9EA | 11EA |
| C006 | Reducer, PT 1/8"F x M8 x 1P | 1EA | ||
| C003-1 | Distributor, 3 (1P) M8 x 1P | 1EA | - | - |
| C003-2 | Distributor, 4 (2P) M8 x 1P | - | 1EA | - |
| C003-3 | Distributor, 5 (3P) M8 x 1P | - | - | 1EA |
| C004 | Resistance Valve, #1 Distributor Spray | 2EA | 3EA | 4EA |
| C021-2 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 20ft (6m) | 1EA | - | - |
| C021-3 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 30ft (9m) | - | 1EA | - |
| C021-4 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 40ft (12m) | - | - | 1EA |
| C010 | Tube Clamp, Dia. 4mm x 1R | 4EA | 6EA | 8EA |
| C007 | Tube Fitting, Dia. 4mm x PT1/8"M | 2EA | 3EA | 4EA |
| C011 | Insert, Dia. 4mm x 2.5mm | 2EA | 3EA | 4EA |
| C009 | Sleeve Ring, Dia. 4mm | 4EA | 6EA | 8EA |
| Cable Tie | 4EA | 6EA | 8EA | |
| List | Part No. | Description | Q'TY |
|---|---|---|---|
| 1 | B003 | Oil Brush Bracket, "L" Shape, Steel | 1 |
| 2 | B051 | Self Drilling Screw, #8 x 19, Steel | 2 |
| 3 | A002 | Reducer, PT3/8" F x PT1/8" M Adaptor, Brass | 1 |
| 4 | B057 | Washer, Ø25 x Ø10.5 x 1.5t, Steel | 1 |
| 5 | B058 | Tooth Washer, O.D.23mm x I.D.14.5mm x 1t, Steel | 1 |
| 6 | C012 | Socket, PT1/8" F x NPT1/8" F, Brass | 1 |
| 7 | C013 | Oil Brush, 2" Flat Stainless Steel, NPT1/8" M | 1 |
| 8 | C014 | Oil Brush, 1" Round Stainless Steel, NPT1/8" M | 1 |
| List | Part No. | Description | Q'TY |
|---|---|---|---|
| 1 | B003-01 | Oil Brush Bracket, "L" Shape, Steel | 1 |
| 2 | B051 | Self Drilling Screw, #8 x 19, Steel | 2 |
| 3 | A315 | Reducer, PT3/8" F x PF1/4" Mx30mm x PT1/8" F, Steel | 1 |
| 4 | B058 | Tooth Washer, O.D.23mm x I.D.14.5mm x 1t, Steel | 1 |
| 5 | N001 | Nut, PF1/4" F x 5mm, Steel | 1 |
| 6 | C017 | Oil Brush, 45 x 20 x 30mm Flat Nylon, PF1/4" F | 1 |
| 7 | C018 | Oil Brush, 74 x 20 x 30mm Flat Nylon, PF1/4" F | 1 |
