ADVANCED FEATURES

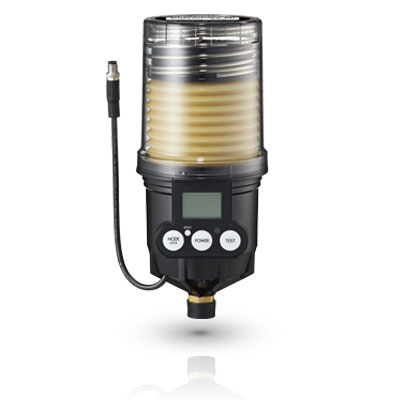

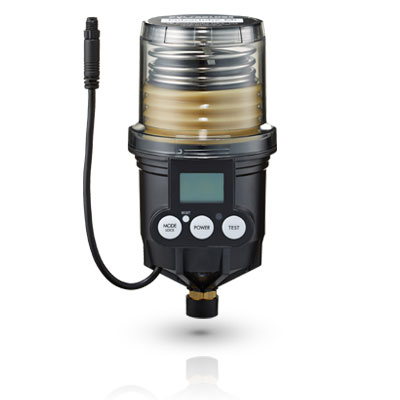

Pulsarlube Mi

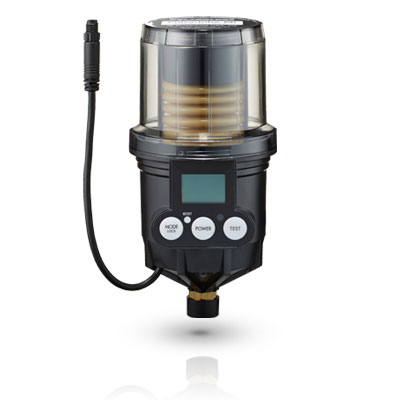

SERIES Mi60: Ø91mm(3.60") x 181mm(7.13") (H)
  • Pulsarlube MI

    60

Pulsarlube MI operates only when vibration is detected on the installed application.
The Pulsarlube MI automatic grease lubricator is innovatively designed to detect the operation of industrial rotational machinery by using a piezoelectric vibration sensor. This piezoelectric sensor is composed of a ceramic strain transducer attached to a metallic proof mass in order to respond to an externally imposed acceleration. The Pulsarlube Mi periodically checks the operating status of the machinery which it is attached to.

As the Pulsarlube Mi receives a vibration signal from the machinery, the unit will dispense an adequate amount of fresh lubricant in line with the operation of machinery. If there is no vibration signal detected, the unit will automatically go into stand-by mode to avoid the problems involving over-lubrication.
FEATURES
Vibration Sensor

Vibration Sensor

Vibration sensor allows the unit to lubricate only when the application is operating

Simple & Precise

Simple & Precise

Simple to operate & dispenses precise amounts of lubricant reliably

No Wire

No Wire

No need for external electric wiring to motors or other power cables

Service Pack

Service Pack

Substantial savings from the use of replaceable grease pouches and battery packs

PRODUCT INFO

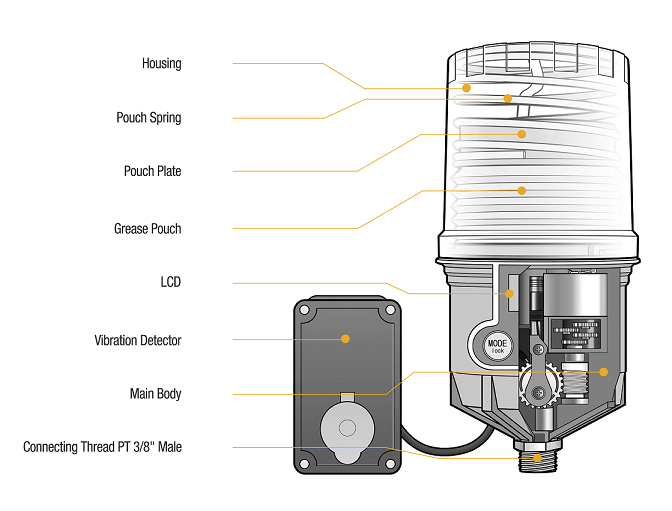

CROSS SECTION

Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Power Supply DC 4.5V Battery Pack
Grease Pouch Capacity 60ml/125ml/250ml (replaceable)
Operating Pressure 30~60bar (435~870psi)
Operating Temperature Standard Alkaline Battery : -15˚C~60˚C (5˚F~140˚F)
Optional Lithium Battery : -40˚C~60˚C (-40˚F~140˚F)
Dispensing Periods 1~12 month
Remote Installation Max. 1m (3.3ft) with O.D. Ø6 tube
Multi-Point Installation Max. 1m (3.3ft) with O.D. Ø6 tube (Up to 2 lube points)

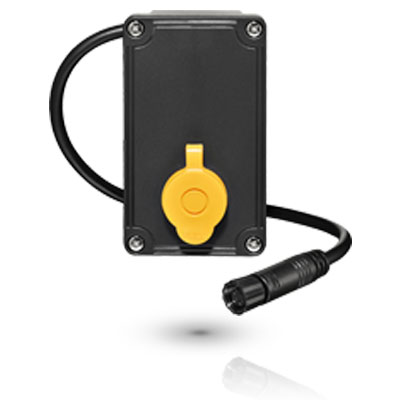

Vibration Detector Piezoelectric Cantilever-type
Film Sensor
• Adjustable Sensitivity Range
Wire Length • To Lubricator : 150mm (0.5ft) • Sensor Cable : 1.2m (4ft)
Product Certifications CE, KCs
Packaging 10 Units/Case
Product Certifications
Certification Description
CE No. : TA 385-17-2671
KC MSIP-REM-KLT-MI250

INSTALLATIONS

Reducer
Reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A002-S Reducer, 3/8"F x 1/8"M Adaptor (Brass)
Socket + Pipe + Reducer
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
Kit No. 1250RC-1
Kit No. 1250RC-1
Part No. Description
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
B002 Mounting Bracket, “L”Shape
B051 Self Drilling Screw, #8 x 20
B057 Washer
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass)
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M
A214-1 Distribution Tubing, O.D. 1/4"(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type)
A243 Thread Converter, PT1/8"F x NPT1/8"M (Brass)

Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.

Electromechanical Products using a divider block ( up to 8 points )
Electromechanical Products using a divider block ( up to 2 points )
Part No. Description Q'TY
A002 Reducer, 3/8″F x 1/8″M Adaptor (Brass) 1
B002 Mounting Bracket, “L”Shape 1
B051 Self Drilling Screw, #8 x 20 1
HU-2RS HU Type Divider Block, Grease Type, 2 Ports 1
B058 Tooth Washer 2
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M 3
A214-1 Distribution Tubing, O.D. 1/4″(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) 1
A243 Thread Converter, PT1/8″F x NPT1/8″M (Brass) 1
