ELECTROCHEMICAL

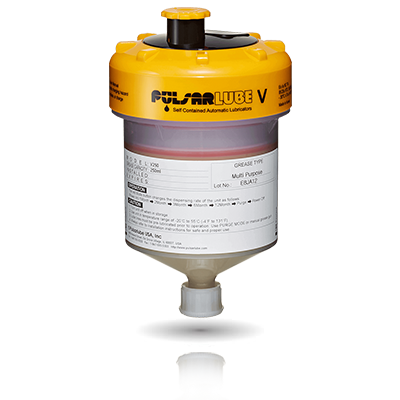

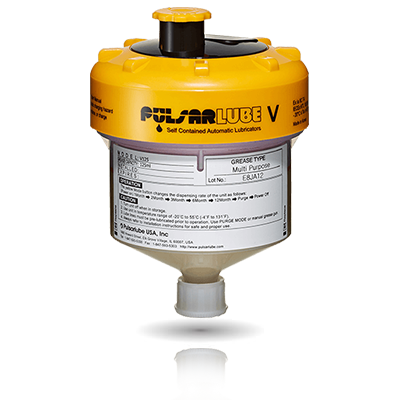

Pulsarlube V

SERIES V125: Ø97mm(3.83") x 125mm(4.92") (H)
  • Electrochemical Lubricator

    125

The Pulsarlube V is an easy-to-program gas type lubricator which offers an informative LCD display.
The Pulsarlube V automatic grease lubricator operates based on the proven technology of electrochemical reaction which generates inert Nitrogen (N2) gas through the systematic use of an electrolyte and electrical energy.

It is designed to help users easily set the dispensing rate by use of the microprocessor and LCD. The Pulsarlube V controls the electrolytic reaction for the best dispensing rate and dispenses a precise certain amount of grease at the set rate, suitable for most industrial applications. This product is an intrinsically safe product, certified as Ex ia llC T4 for use in hazardous areas.
FEATURES
Electrochemical Lubricator Certified

Certified

Certified CE, ATEX, UL for use in hazardous areas

Electrochemical Lubricator System

System

8-bit microprocessor controlled to ensure the most accurate dispensing rate

Electrochemical Lubricator Easy

Easy

Easy to reprogram at any time with a press of a button

Electrochemical Lubricator LCD

LCD

Easy to program with built-in LCD and simple button controls

PRODUCT INFO

CROSS SECTION

Electrochemical Lubricator Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Grease Pouch Capacity 125ml/250ml (disposable)
Gas Type Electrochemical reaction
(Nitrogen gas)
Operating Pressure Max. 5bar (73psi)
Operating Temperature -20˚C~55˚C (-4˚F~131˚F)
Dispensing Periods 1, 2, 3, 6, 12 month & Purge (P)
Remote Installation Max. 1m (3.3ft) with O.D. Ø8 tube
Multi-Point Installation N/A
Packaging 10 Units/Case
Product Certifications
Certification Description
IP Code
ATEX
UL
IECEX
KCs
MSHA Approval No. 18-A180003-0
CE / Etc. CE 0344

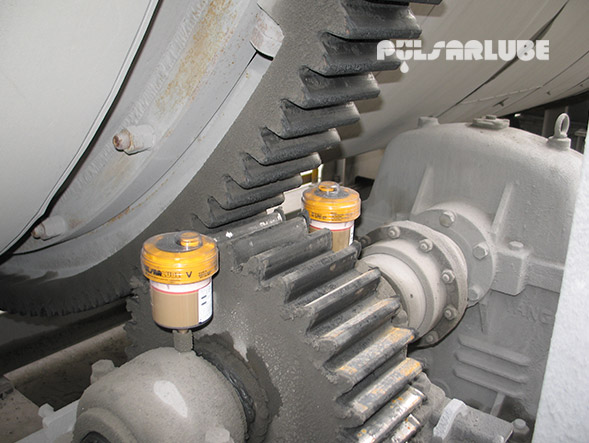

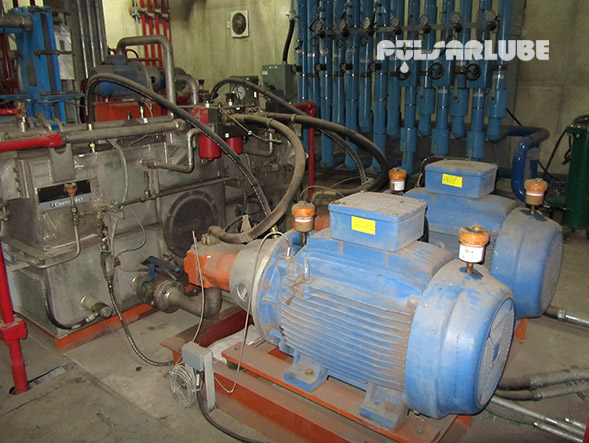

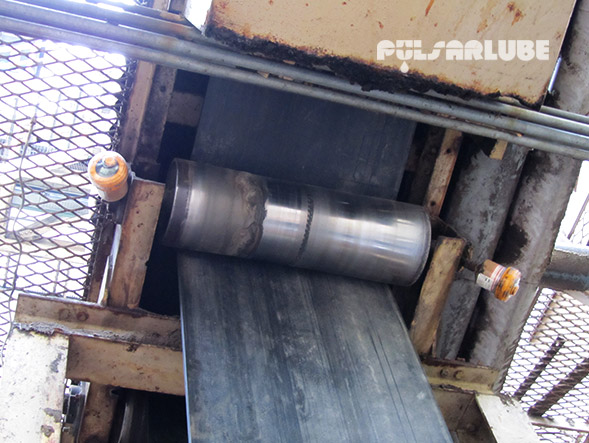

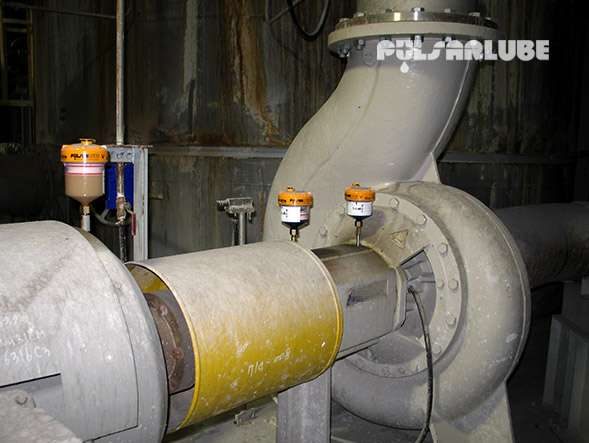

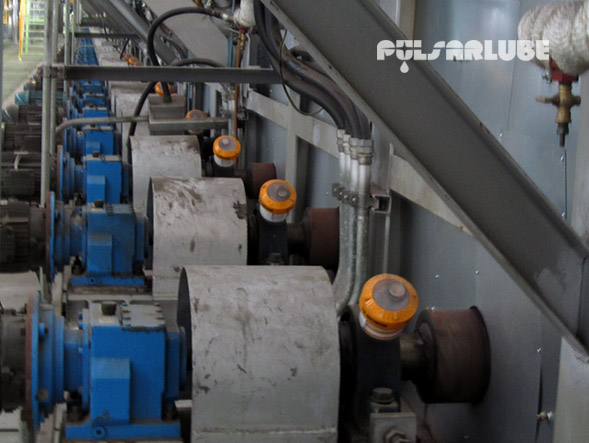

INSTALLATIONS

Electrochemical Lubricator Reducer
Reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A003 Reducer, 3/8"F x 1/8"M Adaptor (Steel)
Electrochemical Lubricator
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
Electrochemical Lubricator 45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
Electrochemical Lubricator 90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
Electrochemical Lubricator Kit No. 1000RC-1
Kit No. 1000RC-1
Part No. Description Q'TY
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass) 1
B002 Mounting Bracket, “L”Shape 1
B057 Washer 1
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass) 1
A239 Tube Fitting, Push-In Type, PC8-PT1/8"M 2
B051 Self Drilling Screw, #8 x 20 3
A212-1 Distribution Tubing, O.D. 5/16"(8mm)
Urethan Tubing, 3ft Pre-filled with (Grease Type)
1
A243 Thread Converter, PT1/8"F x NPT1/8"M (Brass) 1

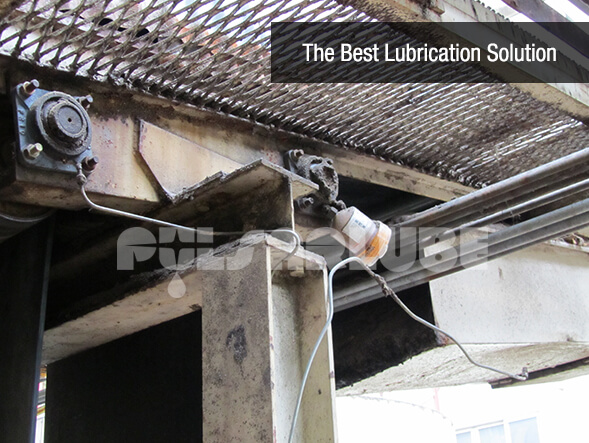

Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.
