ADVANCED FEATURES

Pulsarlube PLC

SERIES PLC60 :Ø91mm(3.60") x 181mm(7.13") (H)
  • Pulsarlube PLC

    60

The Pulsarlube PLC is specially designed to be fully integrated with a PLC system and offered in two types; MONTH and INTERVAL type.
Pulsarlube PLC electromechanical automatic grease lubricator is specially designed to be fully integrated as well as be synchronized to a PLC system. Kindly offers two types of PLC lubricator, Month and Interval type for wider range of usage.

For Month type, dispensing interval is calculated based on the lubricator and discharges only when the machine is in operation.

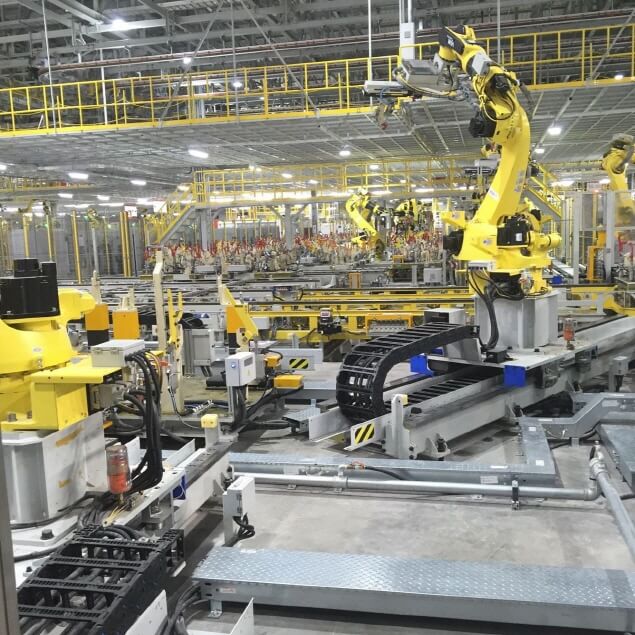

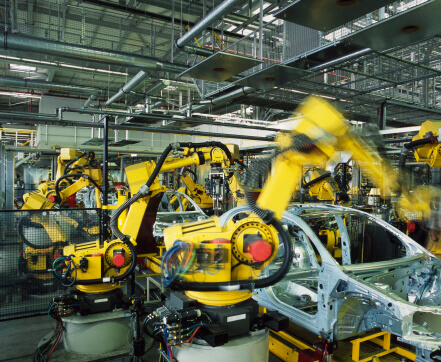

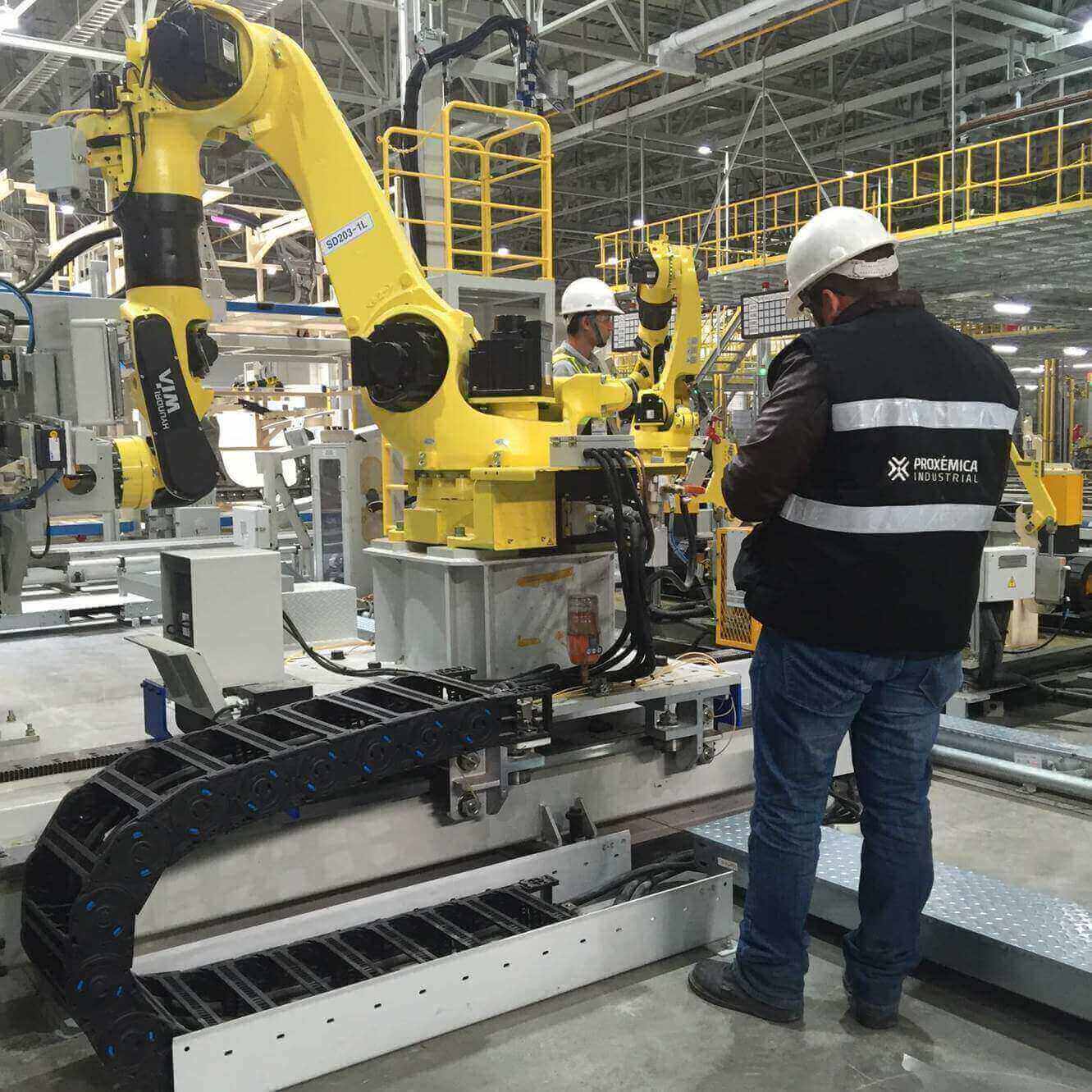

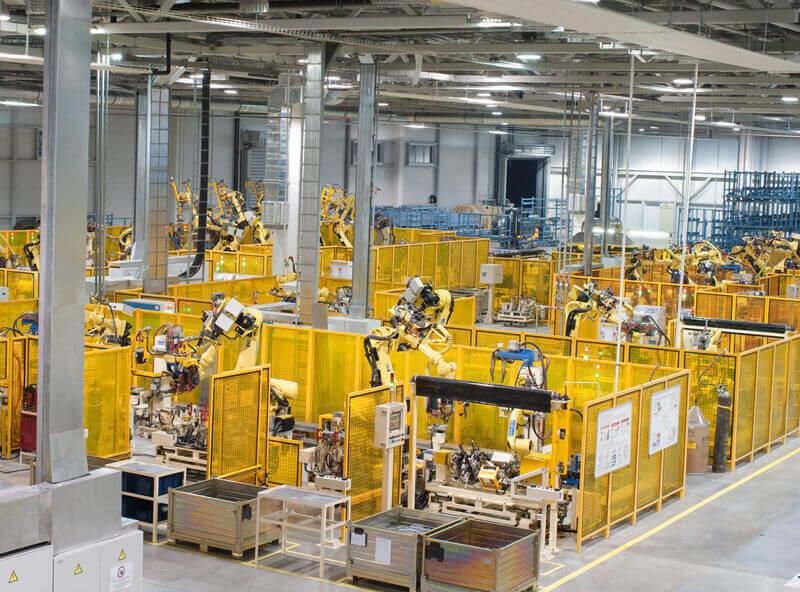

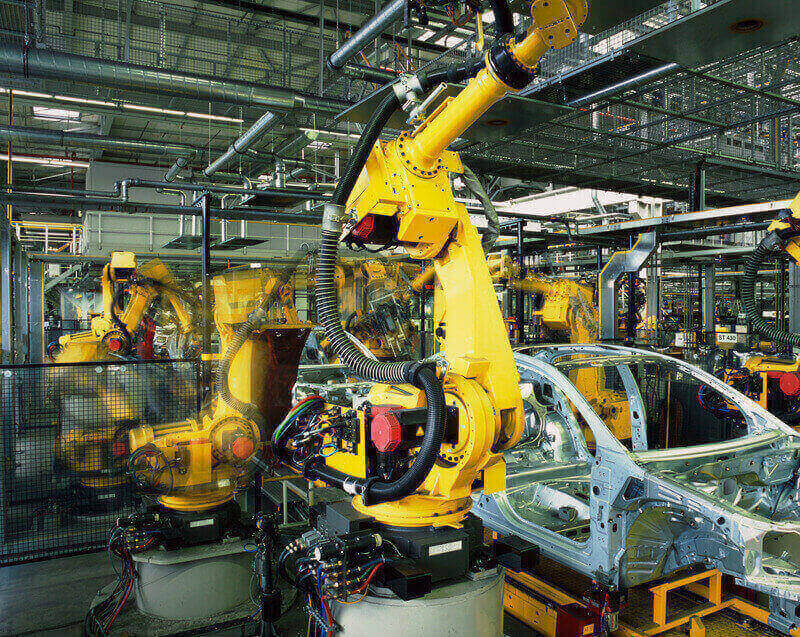

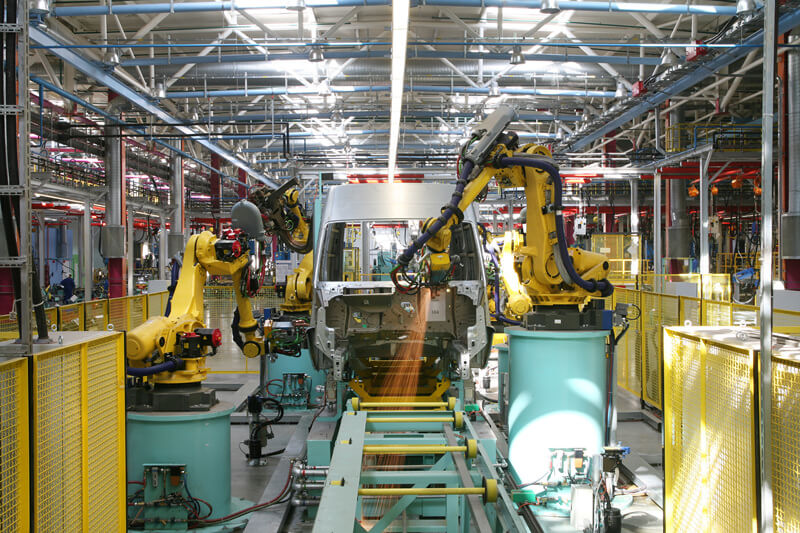

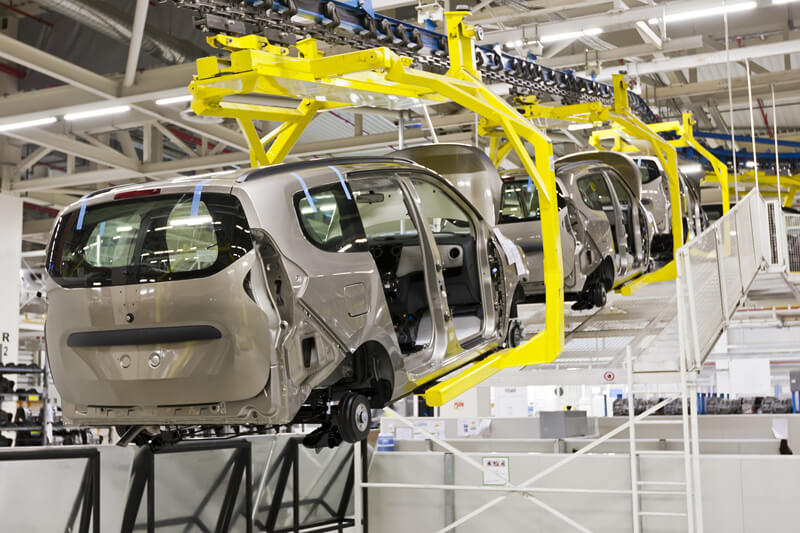

For interval type, dispensing interval is calculated by PLC and provides the selective modes for discharging a predefined lubricant amount. Pulsarlube PLC is ideal for lubricating a wide variety of robots, conveyors, roller-slide bearing, motor shaft seals, generators, pumps, fans and many other linear guide systems. In case of any malfunctioning, it allows the user to manage and obtain necessary data of the lubricator remotely from a central control unit (PLC panel) without having to go on-site.
FEATURES
PLC Control

PLC Control

Programmed to deliver fresh lubricant upon receiving a signal from the PLC

Convenient

Convenient

Both NPN and PNP connections are available

Communication

Communication

In case of any warning messages, the unit sends out a signal to an external alarm

2 Types

2 Types

MON type dispenses at predetermined intervals and rates depending on the monthly setting Selected. INT type dispenses on command when a signal is received from the PLC, at the rate selected by the user.

Service Pack

Service Pack

Substantial savings from the use of replaceable grease pouches and battery packs

PRODUCT INFO

CROSS SECTION

Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Grease Pouch Capacity 60ml/120ml/240ml/480ml (pre-set)
Power Supply External Power Supply
Operating Pressure 30~60bar (435~870psi)
Operating Temperature -20˚C~60˚C (-4˚F~140˚F)
Dispensing Periods MONTH type : 1~12 month
INTERVAL type : 1, 2, 3…6 Mode
Remote Installation Max. 10m (33ft) with O.D. Ø6 tube
Multi-Point Installation Max. 6m (20ft) with O.D. Ø6 tube (Up to 8 lube points)
1 Per Stroke(@20˚C) MONTH type : 0.34ml / Stroke (@20˚C)
INTERVAL type : 0.34ml x Mode selected (@20˚C)
Wire Length • To Lubricator : 150mm (0.5ft)
• Extra connecting wires available for Purchase
Packaging 10 Units/Case
Product Certifications
Certification Description
IP Code
CE
KC

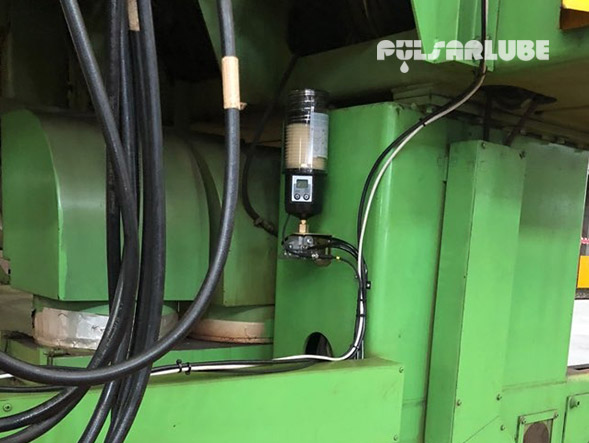

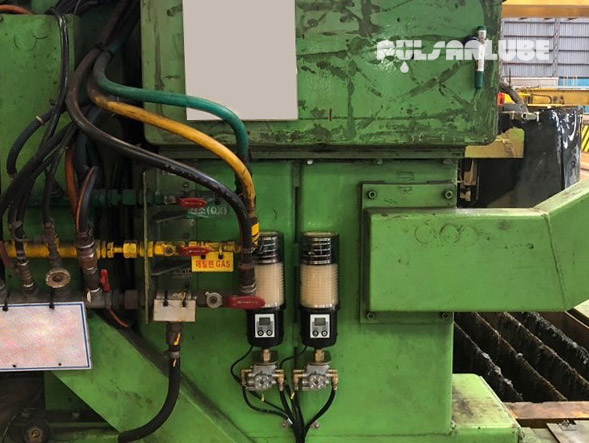

INSTALLATIONS

Reducer
Reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A002-S Reducer, 3/8"F x 1/8"M Adaptor (Brass)
Socket + Pipe + Reducer
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
Kit No. 1250RC-1
Kit No. 1250RC-1
Part No. Description
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
B002 Mounting Bracket, “L”Shape
B051 Self Drilling Screw, #8 x 20
B057 Washer
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass)
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M
A214-1 Distribution Tubing, O.D. 1/4"(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type)
A243 Thread Converter, PT1/8"F x NPT1/8"M (Brass)

Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.

Electromechanical Products using a divider block ( up to 8 points )
Electromechanical Products using a divider block ( up to 8 points )
Part No. Description Q'TY
A002 Reducer, 3/8″F x 1/8″M Adaptor (Brass) 1
B002 Mounting Bracket, “L”Shape 1
B051 Self Drilling Screw, #8 x 20 1
DU-2RS ~ DU-8RS DU Type Divider Block, Grease Type, 2 Ports ~ 8 Ports 1
B058 Tooth Washer 2
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M 3
A214-1 Distribution Tubing, O.D. 1/4″(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) 1
A243 Thread Converter, PT1/8″F x NPT1/8″M (Brass) 1
