ADVANCED FEATURES

Pulsarlube MSP

SERIES MSP60 : Ø91(3.60") x 181mm(7.13") (H)
  • Electromechanical Automatic Grease Lubricator l Pulsarlube MSP

    60

The Pulsarlube MSP units offer the advantage of providing automatic lubrication to machinery that is infrequently or intermittently used by synchronizing itself to the equipment, thereby avoiding the problem of over lubrication.
The Pulsarlube MSP electromechanical automatic grease lubricator is designed to operate in synchronization with the equipment on which it is installed. As long as the equipment is operating, the Pulsarlube MSP will dispense the preset amount of lubricant so that any loss or waste of lubricant can be prevented. This product is a machine synchronized, externally powered unit and the power supply connected to the machine or PLC powers the unit. It is not necessary to replace the battery pack in the unit up to 5 years but the grease pouch should still be replaced after completion of each lubrication cycle set.

NOTE : The MSP 500ml lubricator is also available as an oil version. MSPOL500/VDC and VAC versions.
FEATURES
Synchronized

Synchronized

Dispenses a preset amount of lubricant only when equipment is in operation

LCD

LCD

Easy to program with built-in LCD and simple button controls

60bar

60bar

Up to 8 lube points for multi-point / Max. 10m (33ft) for single point

Service Pack

Service Pack

Substantial savings from the use of replaceable grease pouches and battery packs

PRODUCT INFO

CROSS SECTION

Electromechanical Automatic Grease Lubricator Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Grease Pouch Capacity 60ml/125ml/250ml/500ml
(replaceable)
Power Supply MSP : External Power Supply
Operating Pressure 30~60bar (435~870psi)
Operating Temperature Standard Alkaline Battery :
-15˚C~60˚C (5˚F~140˚F)
Optional Lithium Battery :
-40˚C~60˚C (-40˚F~140˚F)
Dispensing Periods 60ml : 1~12 month
125ml/250ml : 1, 2, 3, 6, 12 month & H (15 days)
500ml : 1, 2, 4, 6, 12, 18, 24 month & H (15 days)
Remote Installation Max. 10m (33ft) with O.D. Ø6 tube
Multi-Point Installation Max. 6m (20ft) with O.D. Ø6 tube
(Up to 8 lube points)
Packaging 10 Units/Case
Product Certifications
Certification Description
IP Code N/A
Etc. N/A
MSP Power Supply Specification
MSP VAC MSP VDC
Voltage Rate Input Range AC Adaptor (100~220V) DC-DC Convertor (12~24V)
Voltage Rate Output Range 5.0V, 2A 5.0V, 2A
Power ON Indicator Red LED Red LED
Relay Box Dimensions 85mm (D) x 49mm (W) x 32mm (H) 85mm (D) x 49mm (W) x 32mm (H)
Wire Length Input 1m (3ft) / Output 4m (13ft) Input 1m (3ft) / Output 4m (13ft)

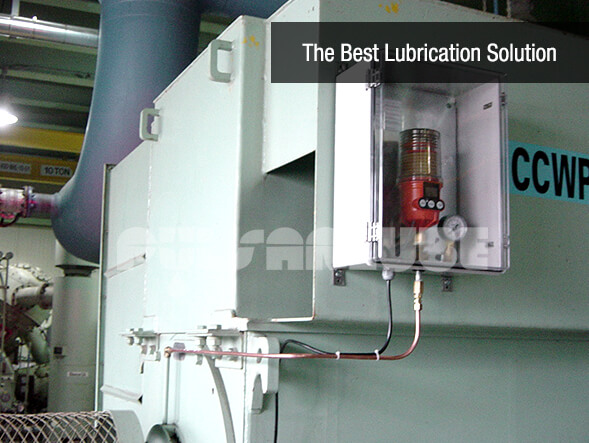

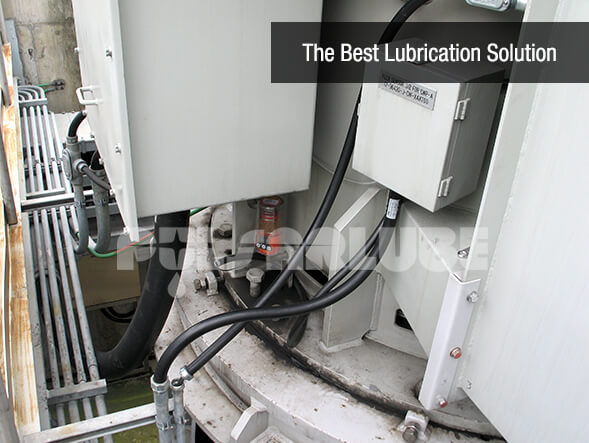

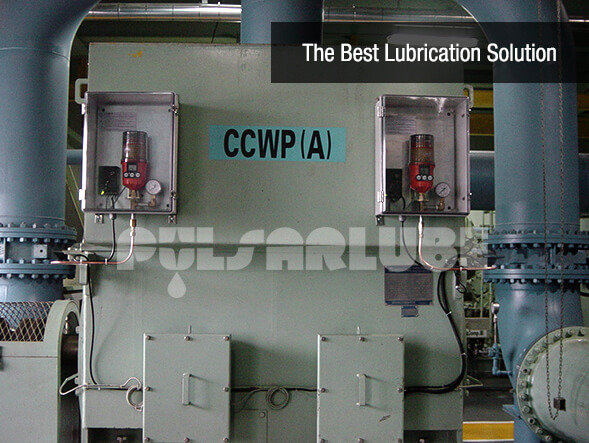

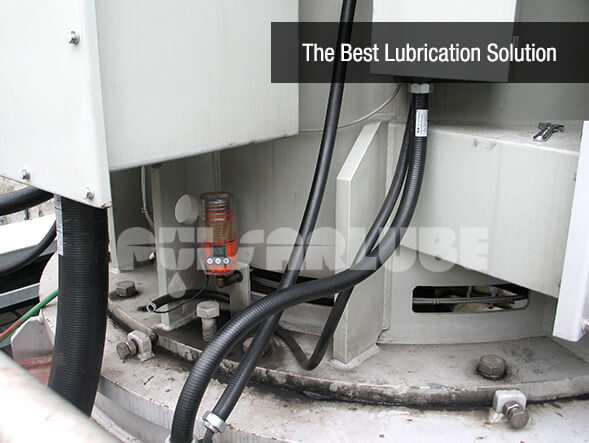

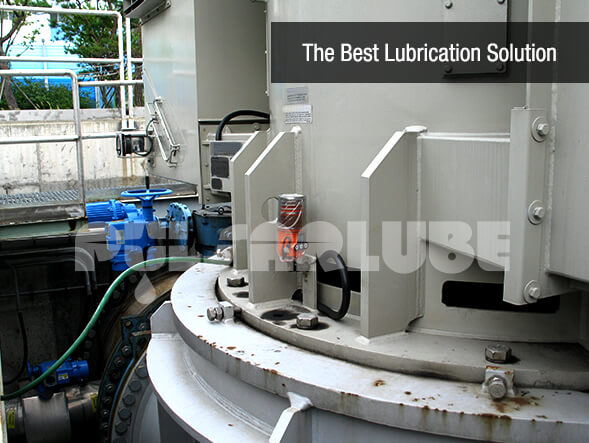

INSTALLATIONS

Electromechanical Automatic Grease Lubricator Reducer
Reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A002-S Reducer, 3/8"F x 1/8"M Adaptor (Brass)
Electromechanical Automatic Grease Lubricator Socket + Pipe + Reducer
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
Kit No. 1250RC-1
Kit No. 1250RC-1
Part No. Description
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
B002 Mounting Bracket, “L”Shape
B051 Self Drilling Screw, #8 x 20
B057 Washer
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass)
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M
A214-1 Distribution Tubing, O.D. 1/4"(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type)
A243 Thread Converter, PT1/8"F x NPT1/8"M (Brass)

Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.

Electromechanical Products using a divider block ( up to 8 points )
Electromechanical Products using a divider block ( up to 8 points )
Part No. Description Q'TY
A002 Reducer, 3/8″F x 1/8″M Adaptor (Brass) 1
B002 Mounting Bracket, “L”Shape 1
B051 Self Drilling Screw, #8 x 20 1
DU-2RS ~ DU-8RS DU Type Divider Block, Grease Type, 2 Ports ~ 8 Ports 1
B058 Tooth Washer 2
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M 3
A214-1 Distribution Tubing, O.D. 1/4″(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) 1
A243 Thread Converter, PT1/8″F x NPT1/8″M (Brass) 1
