OILER
Pulsarlube EO
SERIES

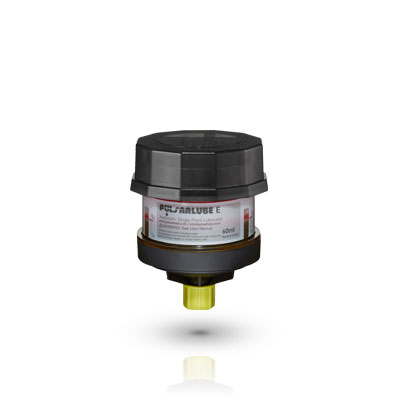

EO60 : Ø77mm(3.03") x 91mm(3.58") (H)
-
60

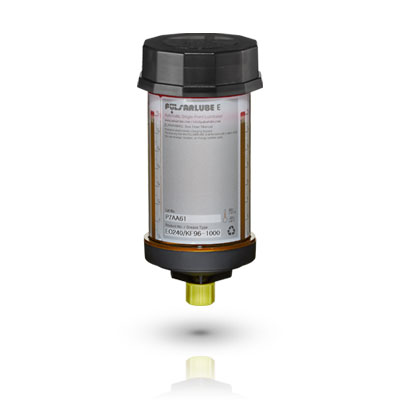

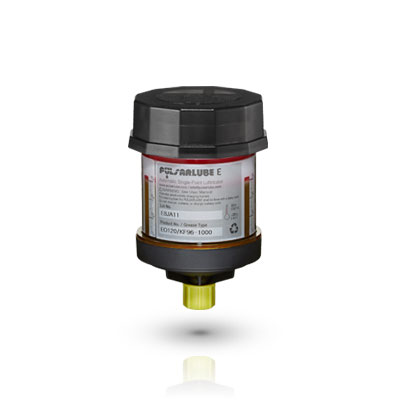

The Pulsarlube EO is a gas type oiler with an NRV (non return valve) which offers superior advantages in cost competitiveness, easy installation and user friendliness.
QUICK DOWNLOAD
The Pulsarlube EO is based on the same mechanism of Pulsarlube E with an NRV which gives cost competitiveness and user-friendliness over other conventional gas type oilers in the market.
The Pulsarlube EO utilizes a mode selecting mechanism to ensure an error-free and simple operation. This product is the right choice for a cost-effective, reliable, and safe product for most industrial applications.
The Pulsarlube EO utilizes a mode selecting mechanism to ensure an error-free and simple operation. This product is the right choice for a cost-effective, reliable, and safe product for most industrial applications.
FEATURES
Easy Maintenance
Transparent container and cap for easy visual inspection of remaining lubricant and dispensing periods
Durability
Specially designed to endure high vibration
Compact Design
Compact 60ml design is convenient for use in very confined spaces
Eco-Friendly
Eco-friendly product where applicable parts can be disposed of separately
PRODUCT INFO

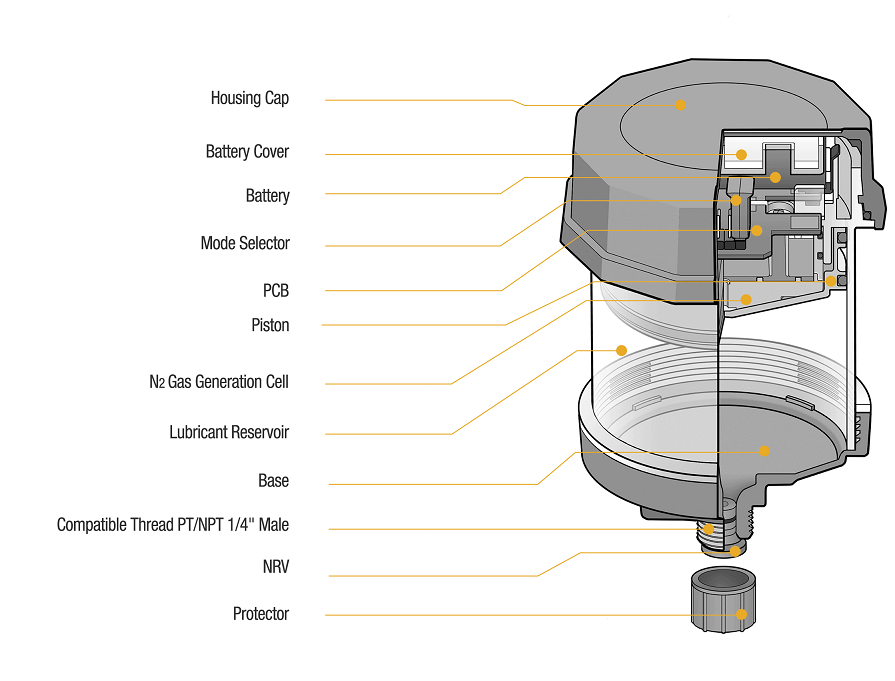

CROSS SECTION
SPEC & CERTIFICATIONS
| SPEC | Description |
|---|---|
| Grease Pouch Capacity | 60ml/120ml/240ml (disposable) |
| Gas Type | Electrochemical reaction (Nitrogen gas) |
| Operating Pressure | Max. 5bar (73psi) |
| Operating Temperature | -20˚C~55˚C (-4˚F~131˚F) |
| Dispensing Periods | 1, 3, 6, 9, 12 month |

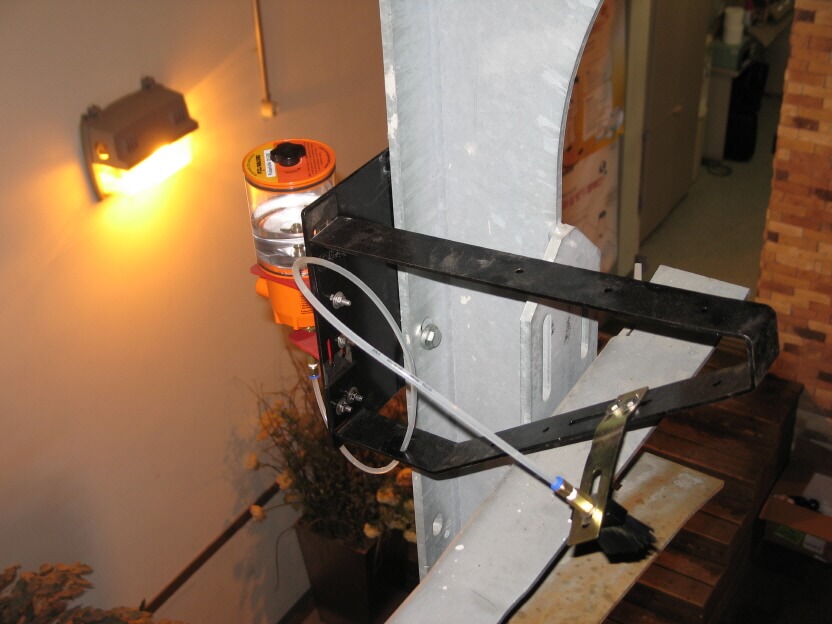

| Remote Installation | Max. 3m (10ft) with O.D. Ø4 tube |
| Multi-Point Installation | N/A |
| Packaging | 10 Units/Case |
| IP Code | IP68 |
| Product Certifications | IECEx, ATEX, KCs, UL, CE, MSHA |
| Certification | Description |
|---|---|
| IP Code | IP68 |
| ATEX | Ⅱ 1 G / ia ⅡC T4 Ga |
| UL | Cl.Ⅰ, Div. 1, Gps A, B, C, D Cl. II, Div. 1 ,Gps E, F ,G |
| IECEX | ia ⅡC T4 Ga |
| KCs | ia ⅡC T4 |
| MSHA | Approval No. 18-A180003-0 |
| CE / Etc. | CE 0344 |
INSTALLATIONS
| Part No. | Description |
|---|---|
| A003 | Reducer, 3/8"F x 1/8"M Adaptor (Steel) |
| A004 | Reducer, 1/4"F x M8 x 1.25 M Adaptor (Steel) |
| A005 | Reducer, 1/4"F x 1/8" M Adaptor (Brass) |
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| Part No. | Description |
| A121 | Pipe,1/4”M x 1/4”M x 50mm (Steel) |
| A122 | Pipe,1/4”M x 1/4”M x 100mm (Steel) |
| A123 | Pipe,1/4”M x 1/4”M x 150mm (Steel) |
| A124 | Pipe,1/4”M x 1/4”M x 200mm (Steel) |
| Part No. | Description |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)
- All Parts should be assembled tightly with PTFE tape.
- For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
- If the bearing lube point is NPT, use the thread converter.
| Part No. | Description |
|---|---|
| NRV | Non Return Valve for E model oiler |
| B072 | Protector for E model oiler |
| A005 | Reducer, 1/4″F x 1/8″ M Adaptor (Brass) |
| B002 | Mounting Bracket, “L”Shape |
| B057 | Washer |
| B051 | Self Drilling Screw, #8 x 20 |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) |
| C007 | Tube Fitting, Dia. 4mm x PT1/8″M |
| C010 | Tube Clamp, Dia. 4mm x 1R |
| C021-1 | Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 10ft |
| C011 | Insert, Dia. 4mm x 2.5mm |
| C009 | Sleeve Ring, Dia. 4mm |
